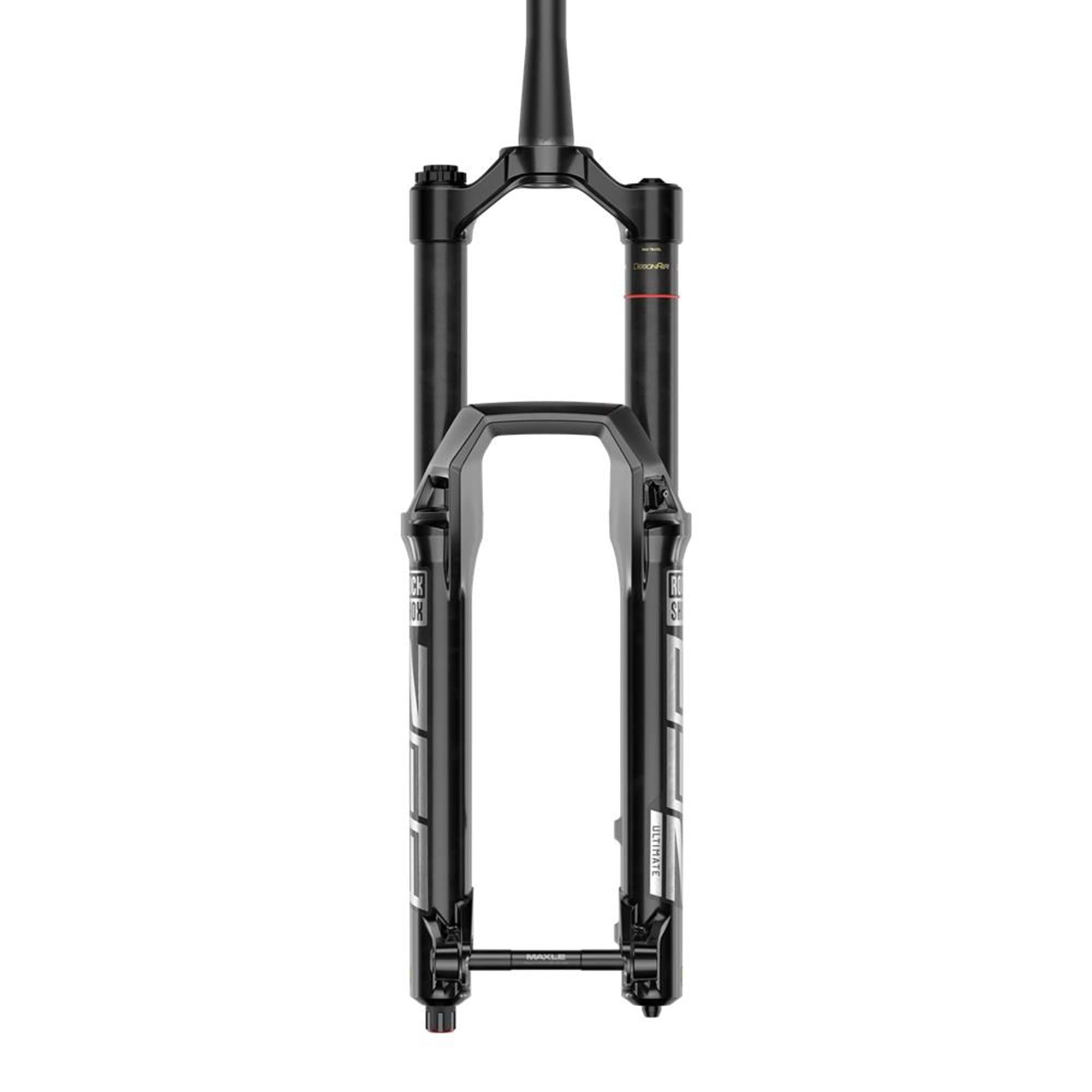

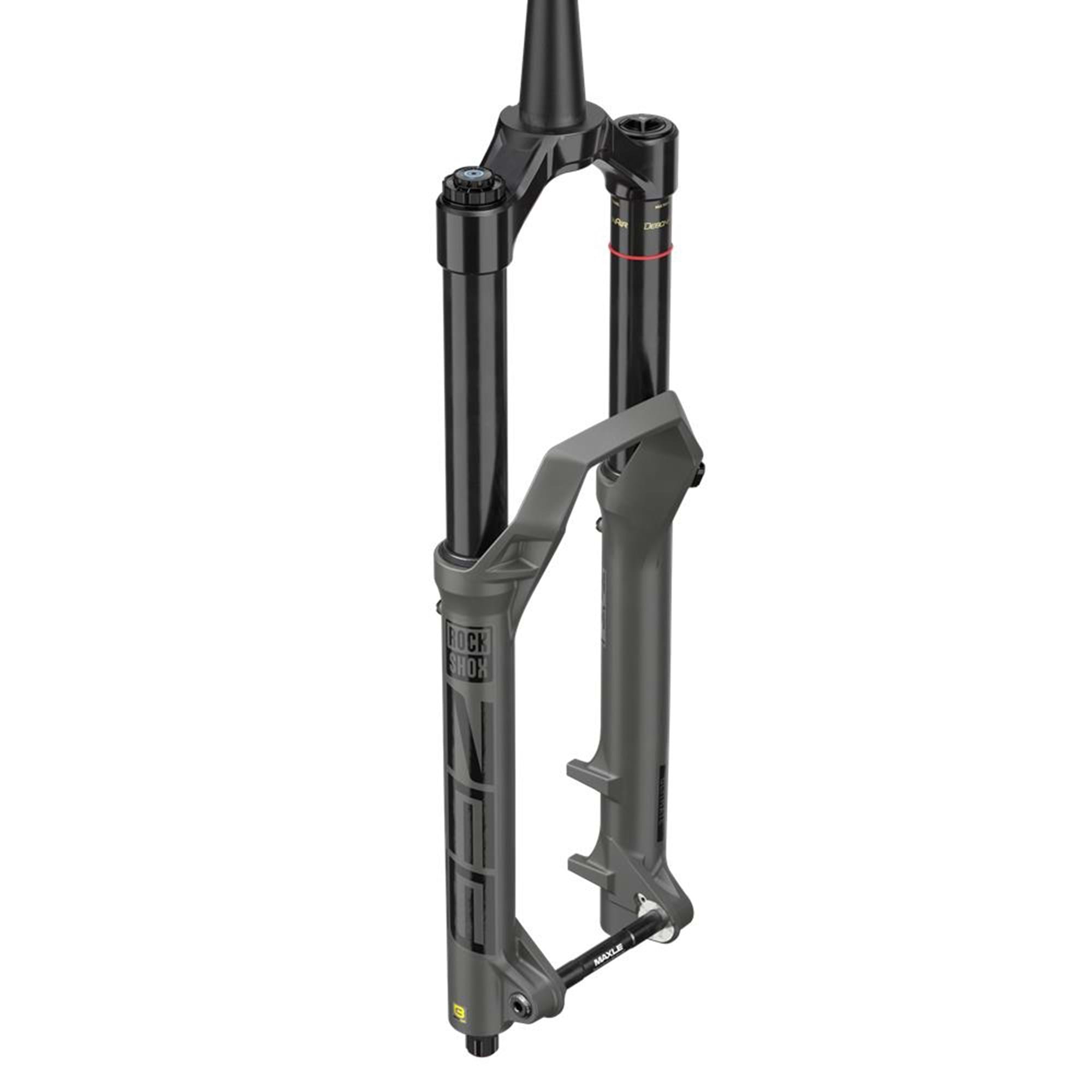

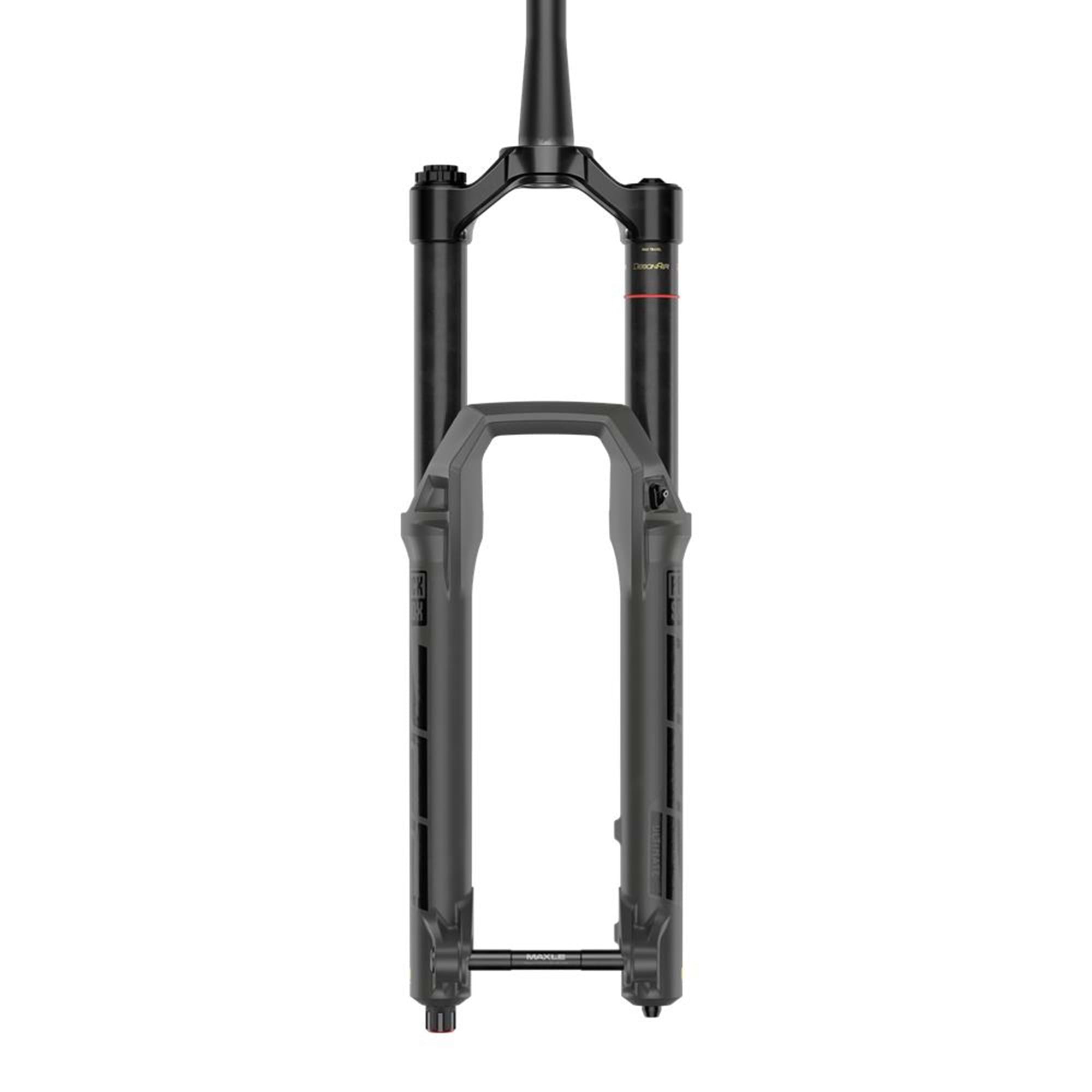

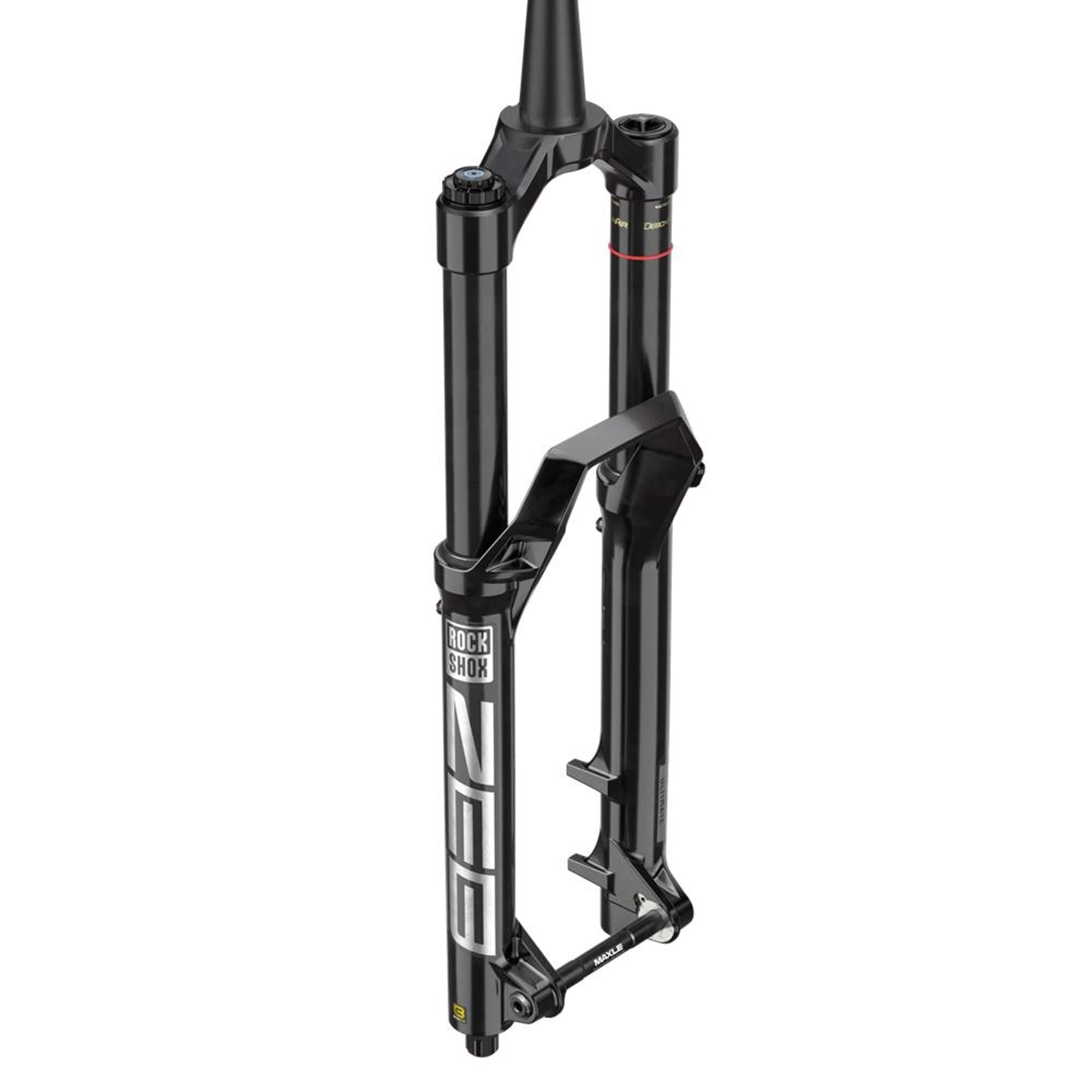

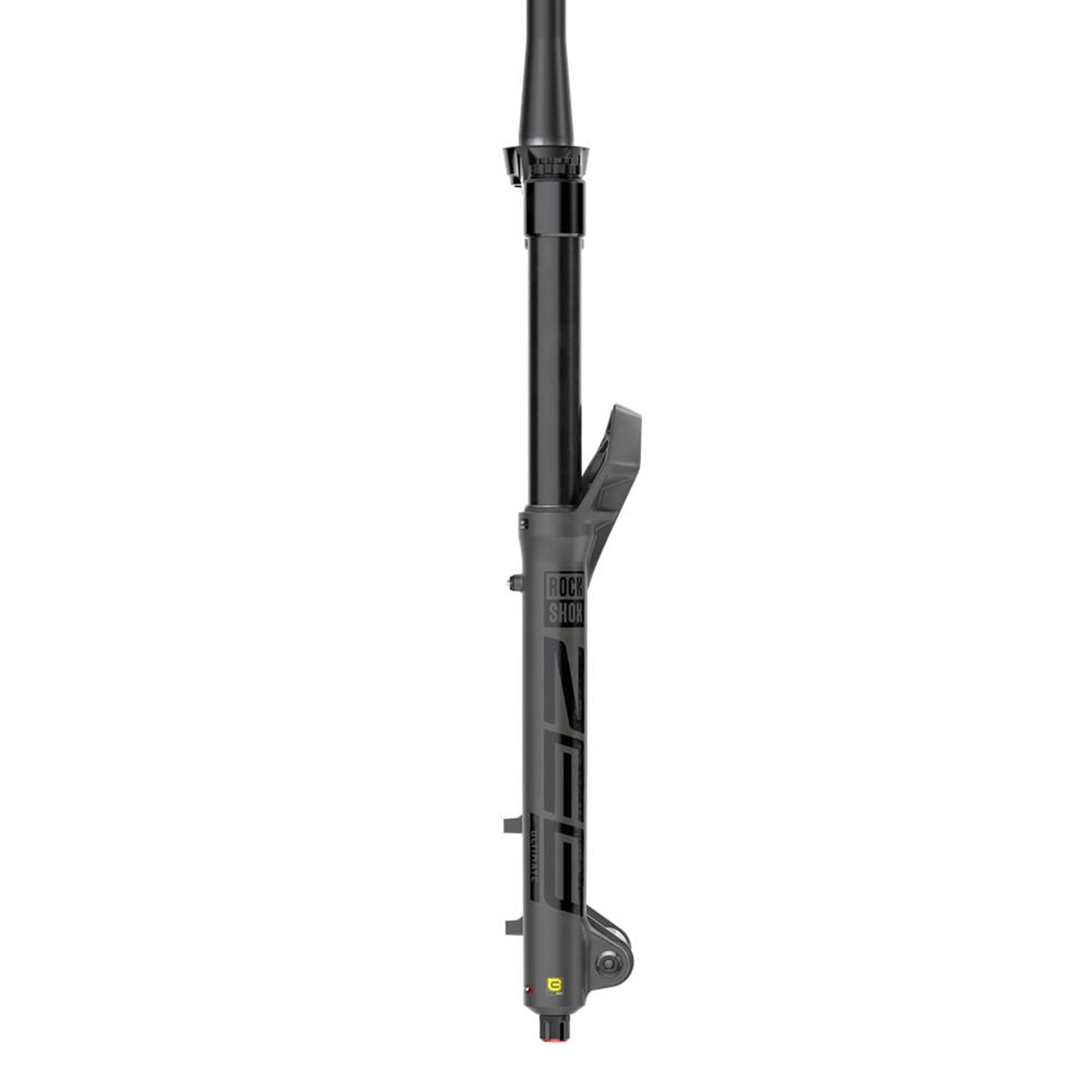

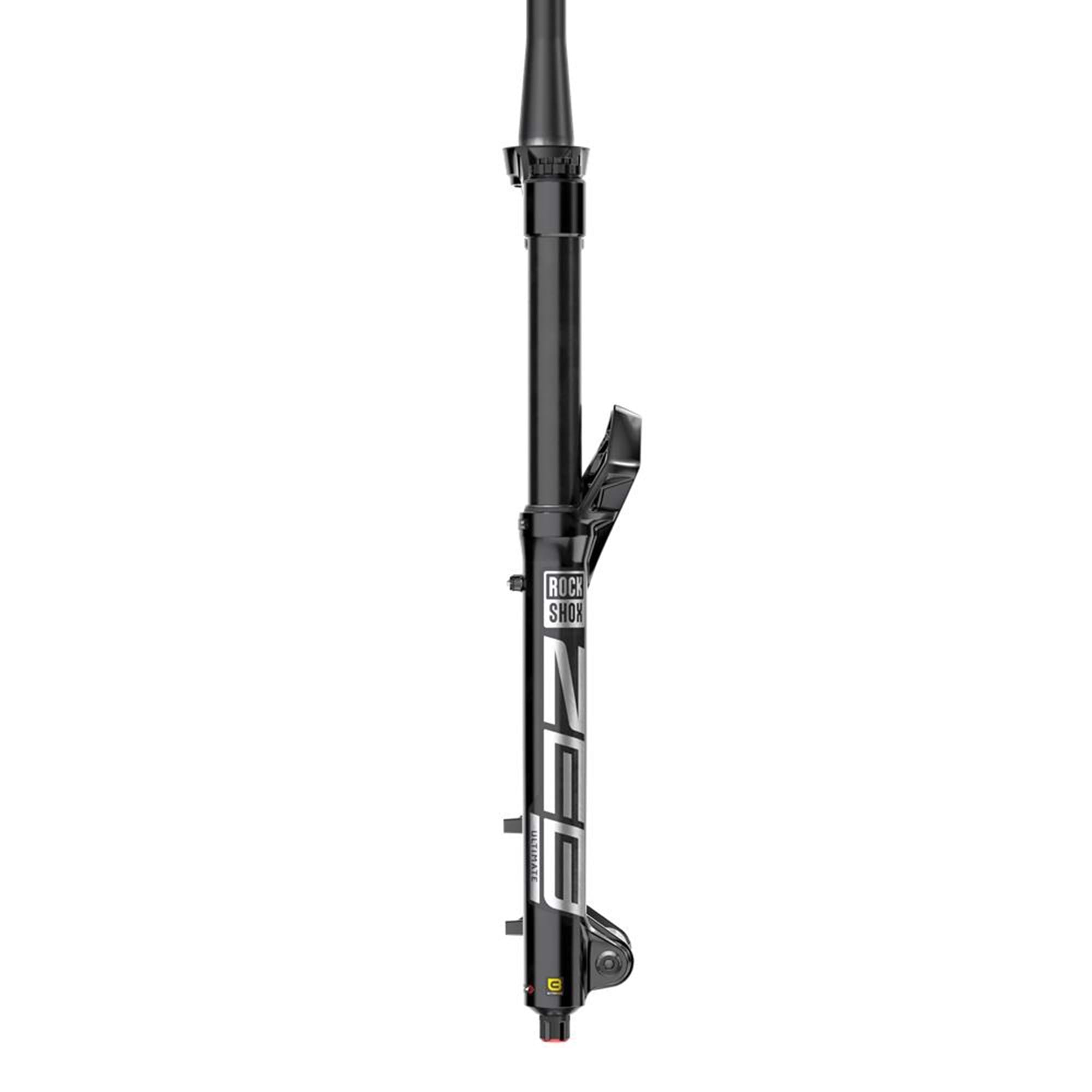

Long on travel, short on excuses, ZEB Ultimate is a whole new breed of fork, designed to challenge the limits and take on the world’s toughest enduro tracks. Going Ultimate has its advantages and features a stiff 38mm chassis designed with the new Charger 3™ RC2 with vibration-killing ButterCup™ technology. Our highest performing, athlete-proven technologies matched with premium style plays. This is ZEB.
FEATURES
- 38mm chassis for increased stiffness and rider confidence
- NEW ButterCups block 20% of high frequency “trail chatter”. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
- NEW Charger 3™ features a completely new Internal Floating Piston (IFP) design with better fidelity, performance and truly independent adjustments without any ""cross talk"". Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is meaningful and exact. This dead silent design allows the rider to truly tune to perfection with every click
- NEW DebonAir+ is built to strike the perfect balance of what riders really want: butter-like small bump feel, increased air volume to add support throughout the travel and higher overall ride height for more confidence when things get steep.
- NEW Ultimate Bushing Package maximizes the fork’s bushing overlap, reducing friction and creating the smoothest ride possible

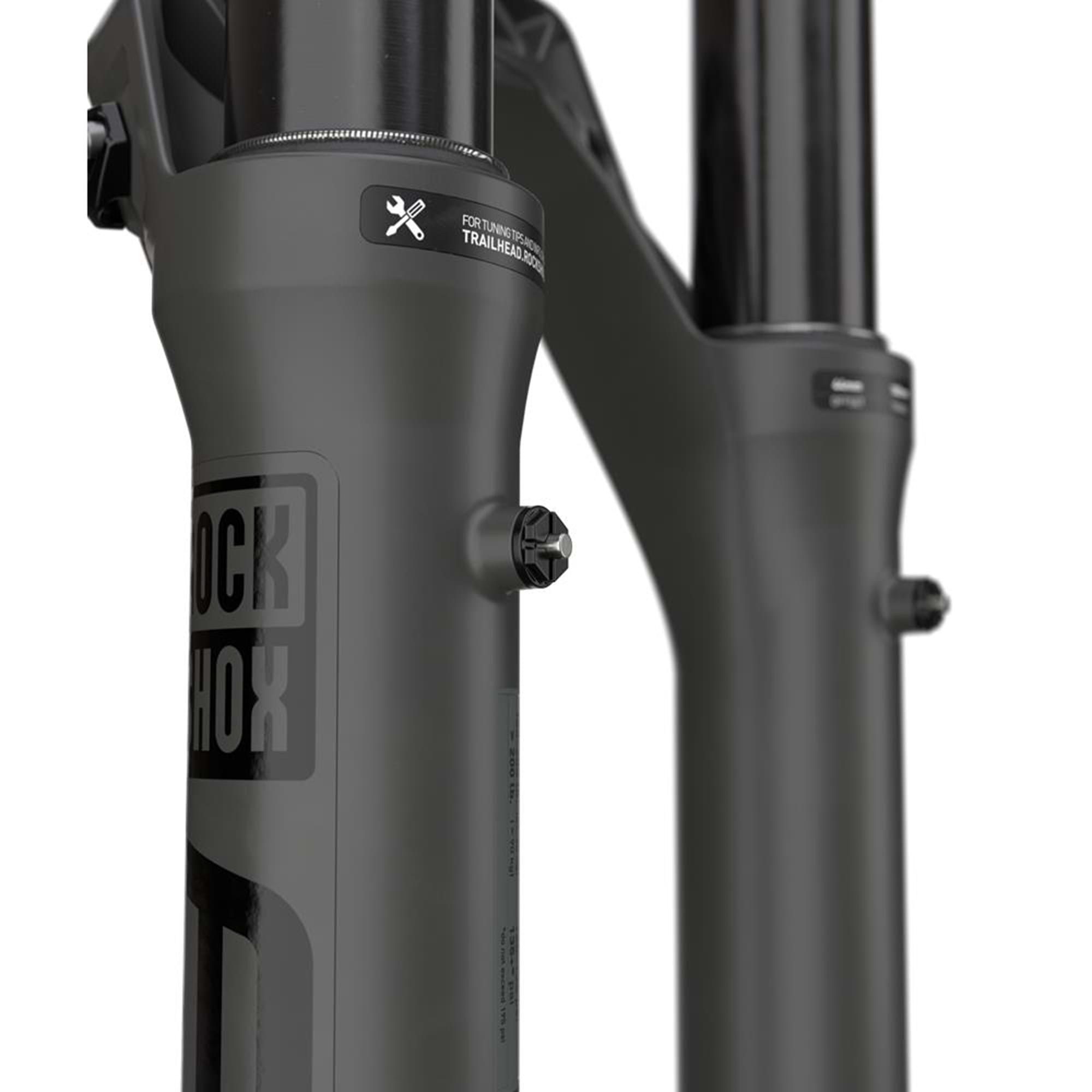

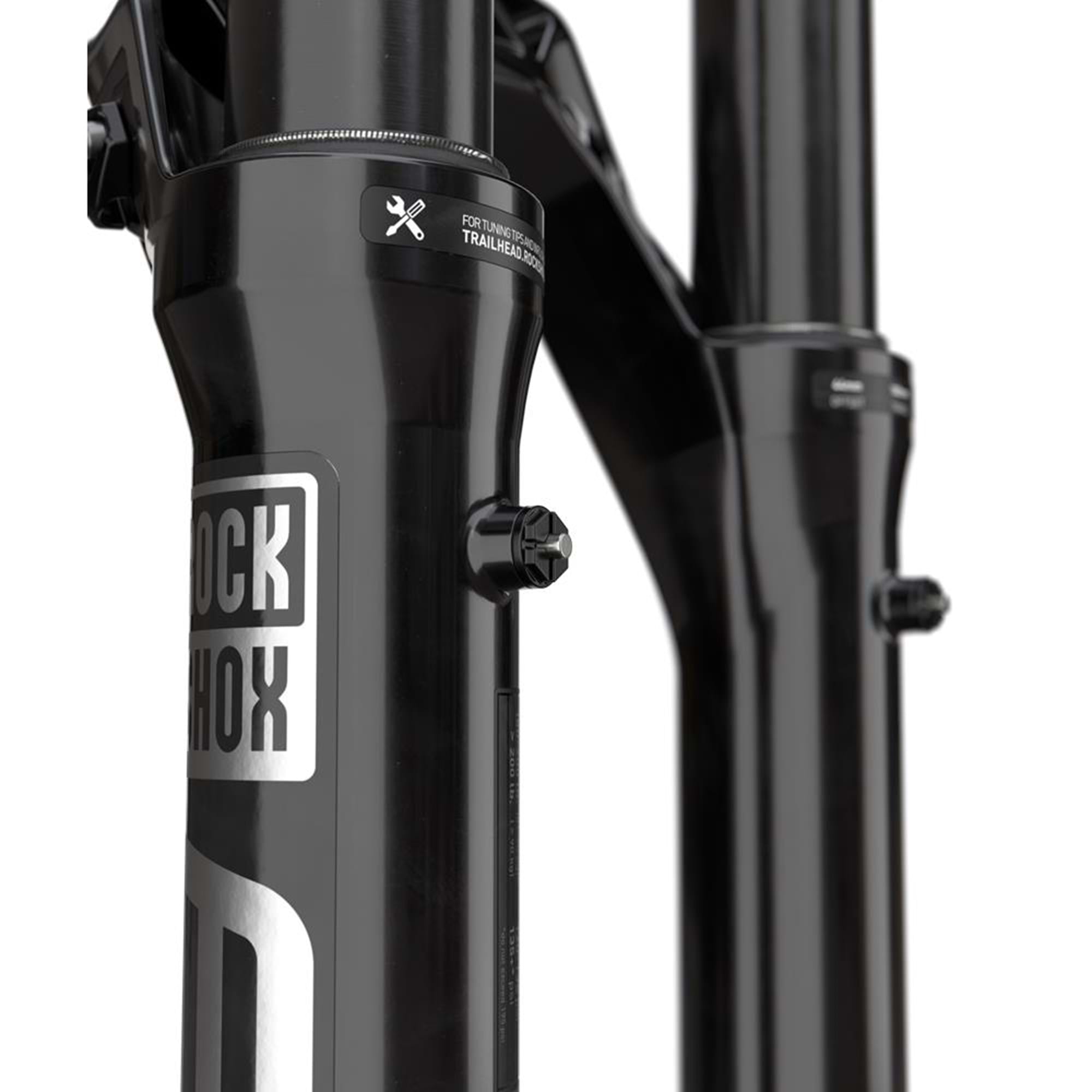

- NEW Pressure Relief Valves eliminate unwanted air pressure build up in the lower leg caused by variations in altitude or temperature. With the press of a button or two, Pressure Relief Valves restore premium fork feel.
- NEW Maxima Plush Dynamic Suspension Lube reduces friction and enhances fork performance ride after ride
- NEW Bolt-in torque cap adapters now included for the use with standard hub end caps
- Lightweight machined and anodized crown for premium looks and durability
- Signature Series graphics package
- RockShox premium short fender compatibility
- Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
- Maxima Plush damping fluid reduces friction and silences damper noise
SPECIFICATIONS
Model designator (SF): Ultimate
Wheel size: 29"
Damper Type: Charger 3 RC2 W/ButterCup
Fork offset: 44mm (29")
Maxle included: Maxle Stealth
E-Bike Approved: E-bike Approved
Steerer: 1.5" Tapered
Axle: 15x110mm BOOST™
Axle to Crown (mm): 606
Brake type (FD): Disc
Crown Material: Forged, hollow aluminum
Upper crown type: n/a
Lower leg type: Pressure Relief Valve
Upper Tube Finish: Fast Black
Upper tube type: 38mm aluminum
Damper adjust: Crown
Damping adjustments: Extl begin stroke rebnd, low speed comp, high speed comp
Volume reducer: 0/4 Tokens
Spring: DebonAir W/ButterCup
Spring rate: n/a
Max Tire Diameter (mm): 770
Max Tire Width (mm): 81
Maximum Rotor Size: 220mm
Minimum Rotor Size: 200mm
Fender Compatibility: Short, 3 point mount
Crown OD (mm): 59
