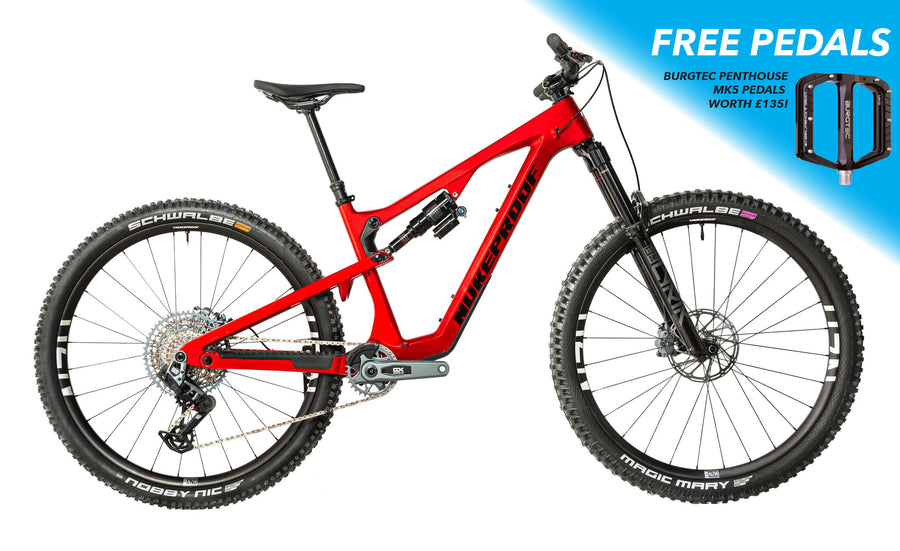

From concept to kinematics, geometry to spec, the Nukeproof Reactor was built from the ground up to be the ultimate aggressive trail bike. It climbs with precision but truly comes alive when you’re charging technical trails.
Constructed from a full UD woven carbon fiber frame, including the chain and seat stays, the Reactor delivers the perfect blend of low weight, strength, and stiffness.
Made for long days in the saddle, it’s your go-anywhere trail weapon—ready for epic adventures where a 1,000m climb leads to a 1,000m descent. Whatever the trail throws at you, the Reactor 290 Carbon is built to take it on.
| Item number | SBIRECNKP002 |
| Brand | Nukeproof |
| Model | Reactor Carbon Pro 290 / 290 |
| Design code | REC01As |
| Size | M |
| Range | Trail/All-Mountain |
| Fork | Rockshox Lyric Select+, Charger 3.1 RC2, Boost 15x110, Debonair+, 160mm travel |
| Material | Carbon |
| Groupset | Sram Transmission GX |
| Crank | Sram GX Eagle, 30T, 165mm |
| Cassette | SRAM XS-1275 T-Type // 12s // 10-52 |
| Front Brake | Sram Maven Bronze 4 piston, mineral oil, steel backed organic pads |
| Rear Brake | Sram Maven Bronze, 4 piston, mineral oil, steel backed organic pads |
| Rear Derailleur | SRAM Transmission GX Rear Derailleur |
| Handlebar | Nukeproof Horizon V2, 31.8mm, 25mm Rise |
| Stem | Nukeproof Horizon, 45mm, Black |
| Saddle | Nukeproof Horizon SL |
| Wheelset | Nukeproof Horizon Pro, BOOST |
| Outer Tyre | Schwalbe Magic Mary/Nobby Nic Super Trail, TLE, 29x2,4" |
| EAN | 5400928704496 |
| Pedals | Not included ** |
| Condition of use | New |
| Warranty period | Lifetime, transferable warranty after registration within 30 days after purchase, with required annual servicing at an authorized dealer. |
* Prices, colors and specifications are subject to change without prior notice
** The images used are only for illustrative purposes. They can show options that are different from the options chosen by you and so are not legally binding.
| Frame | Nukeproof Reactor 290 Carbon, 140mm Travel, UD Carbon Fibre, internal cable routing, ISCG 05 mounts, Max Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing |
| Fork | RockShox Pike Select +, Charger 3.1 RC2, 29" Boost 15x110mm Maxle Stealth, 150mm, 44mm Offset |
| Shock | RockShox Deluxe Select+ Air, 210x52.5mm, Custom Tuned |
| Drivetrain | SRAM GX AXS T-Type, 12-Speed Eagle, 32T |
| Brakes | SRAM Level Silver Stealth, Post Mount, 180/160mm rotors |
| Wheels | Nukeproof Neutron V2. F&R: 29", 15x110mm / 148x12mm Boost, XD Freehub |
| Tyres | F: Schwalbe Nobby Nic 29x2.35" Performance TLE, R: Schwalbe Rocket Ron 29x2.25" Performance TLE |
| Seatpost | TranzX YS108 Dropper, 120mm (S), 150mm (M), 170mm (L), 200mm (XL/XXL) |
| Handlebar | Nukeproof Neutron V2, 20mm Rise, 760mm width |
| Stem | Nukeproof Horizon, 50mm |
| Grips | Nukeproof Horizon Lock-on |
| Saddle | Nukeproof Horizon |
| Weight | Approximately 13.1kg (size Large, without pedals) |
Specification data sourced from nukeproof.com. Contact us to confirm exact build before purchase.
All measurements in mm unless stated. Angles in degrees.
| Measurement | SMALL | MEDIUM | LARGE | X-LARGE | XX-LARGE | |
|---|---|---|---|---|---|---|
| A | Reach | 420 | 440 | 460 | 480 | 500 |
| B | Stack | 614.35 | 614.35 | 627.44 | 640.53 | 653.63 |
| C | Eff. top tube | 555.8 | 576.3 | 592.67 | 614.36 | 635.95 |
| D | Seat tube | 390 | 415 | 440 | 465 | 490 |
| E | Eff. seat angle | 77.5° | 77.5° | 78° | 78° | 78° |
| F | Actual seat angle | 73° | 73° | 73° | 73° | 73° |
| G | Saddle height | 650 | 700 | 750 | 800 | 850 |
| H | Saddle offset | 132.08 | 147.98 | 155.6 | 170.58 | 186.0 |
| I | Head tube length | 100 | 100 | 110 | 120 | 130 |
| J | Head angle | 65° | 65° | 65° | 65° | 65° |
| K | Chainstay | 430 | 430 | 430 | 435 | 435 |
| L | Front centre | 742.47 | 763.47 | 787.22 | 811.03 | 834.77 |
| M | Wheelbase | 1172.47 | 1193.47 | 1217.22 | 1246.03 | 1269.77 |
| N | BB drop | 30/10 | 30/10 | 30/10 | 30 | 30 |
| O | BB height | 345 | 345 | 345 | 345 | 345 |
| P | Standover | 718.51 | 717.28 | 717.77 | 718.97 | 724.77 |
| Q | Fork travel | 150 | 150 | 150 | 150 | 150 |
| R | Trail | 118.77 | 118.77 | 118.77 | 118.77 | 118.77 |
| S | Fork offset | 44 | 44 | 44 | 44 | 44 |
| T | Axle to crown | 567 | 567 | 567 | 567 | 567 |
| U | Max seatpost insert | 216 | 245 | 270 | 291 | 320 |
Source: nukeproof.com — data auto-refreshes in the background.
Not sure on size? Call us on 01202 028162 — our mechanics can talk you through it based on your height, riding style and inseam.
These are Nukeproof's recommended height ranges. If you're between sizes, riding style matters — aggressive enduro riders often prefer to size up for stability; trail riders may prefer to size down for agility. When in doubt, ask us — we ride these bikes ourselves.
